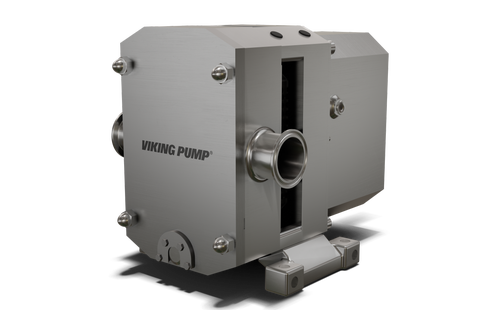

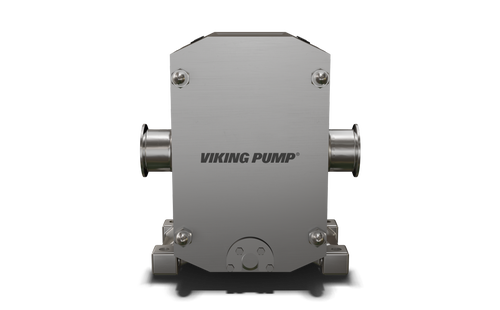

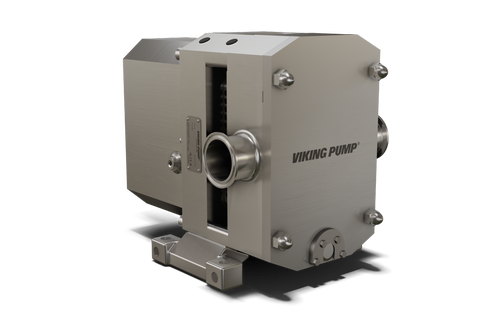

STERILOBE® SERIES

The SteriLobe® Series pump is the perfect rotary lobe solution for pharmaceutical, foods, beverage, and more due to its ability to gently handle product hygienically. It can handle flows up to 753 GPM (171 m³/h).

Features & Benefits

Cleanability

Cover joint profile improves hygienic characteristics & self-draining capabilities
Clean & corrosion resistant stainless gear cover & bearing housing

Ease of Maintenance

Front loading seals can be changed while the pump is still in-line
Seal positioned for optimal lubrication, maximizing seal life
Hassle free gearbox maintenance with sealed for life bearings

Performance

Standard bi-wing rotors offer application flexibility & good solids handling capabilities
Multi-lobe rotors reduce shear & pulsation effect; ideal for sensitive media
Innovative cusps with reliefs allow for easier cleaning and self draining with improved efficiency

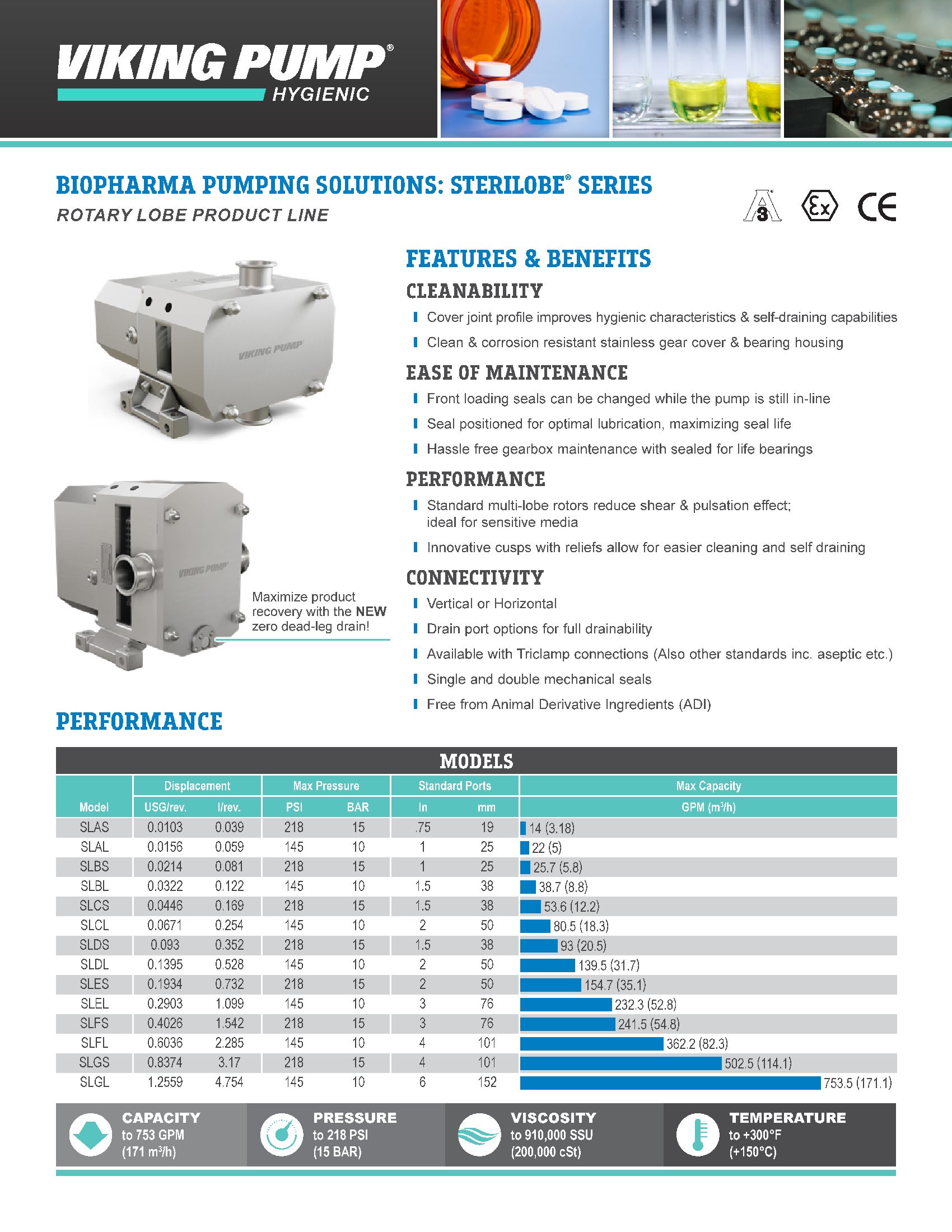

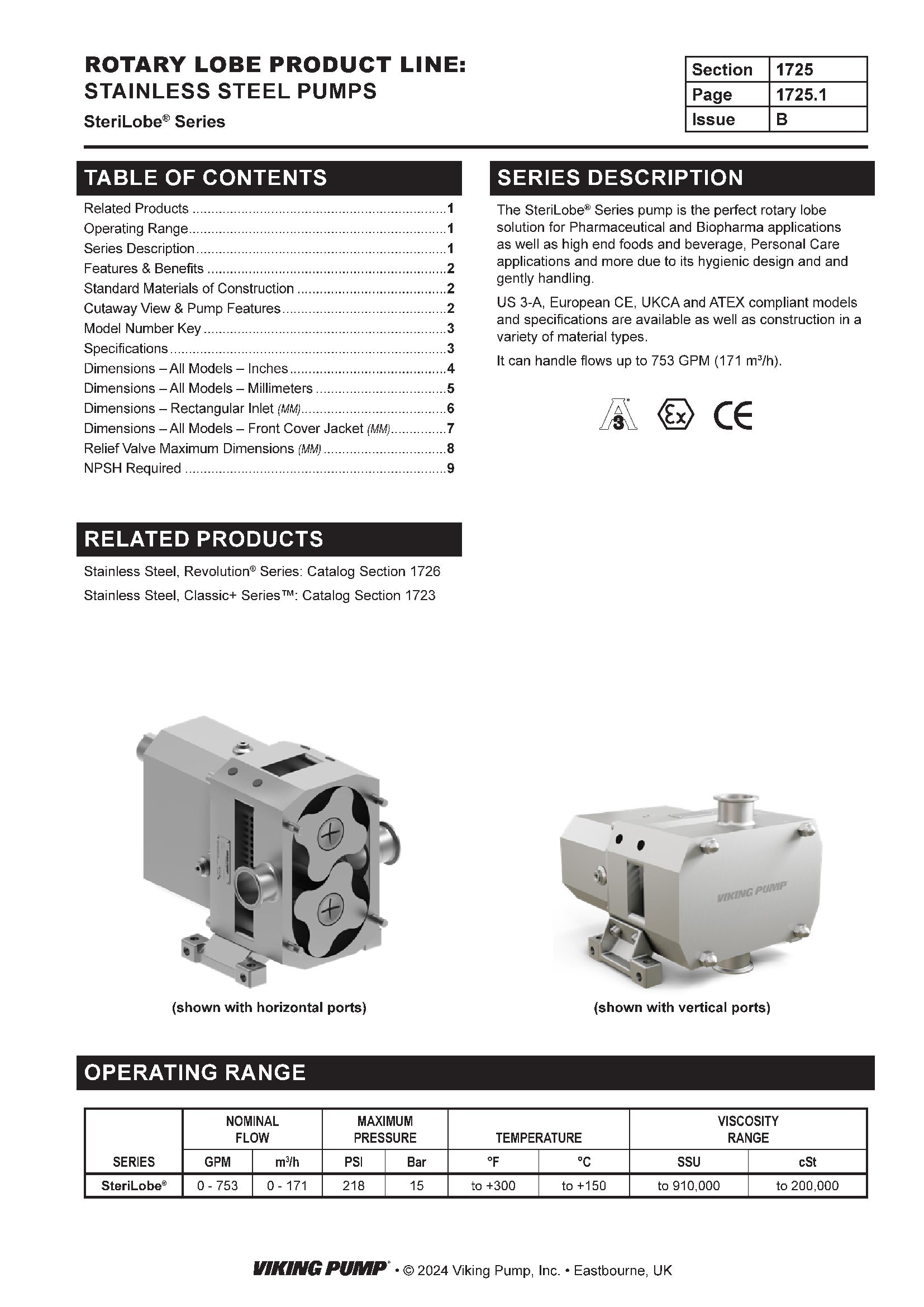

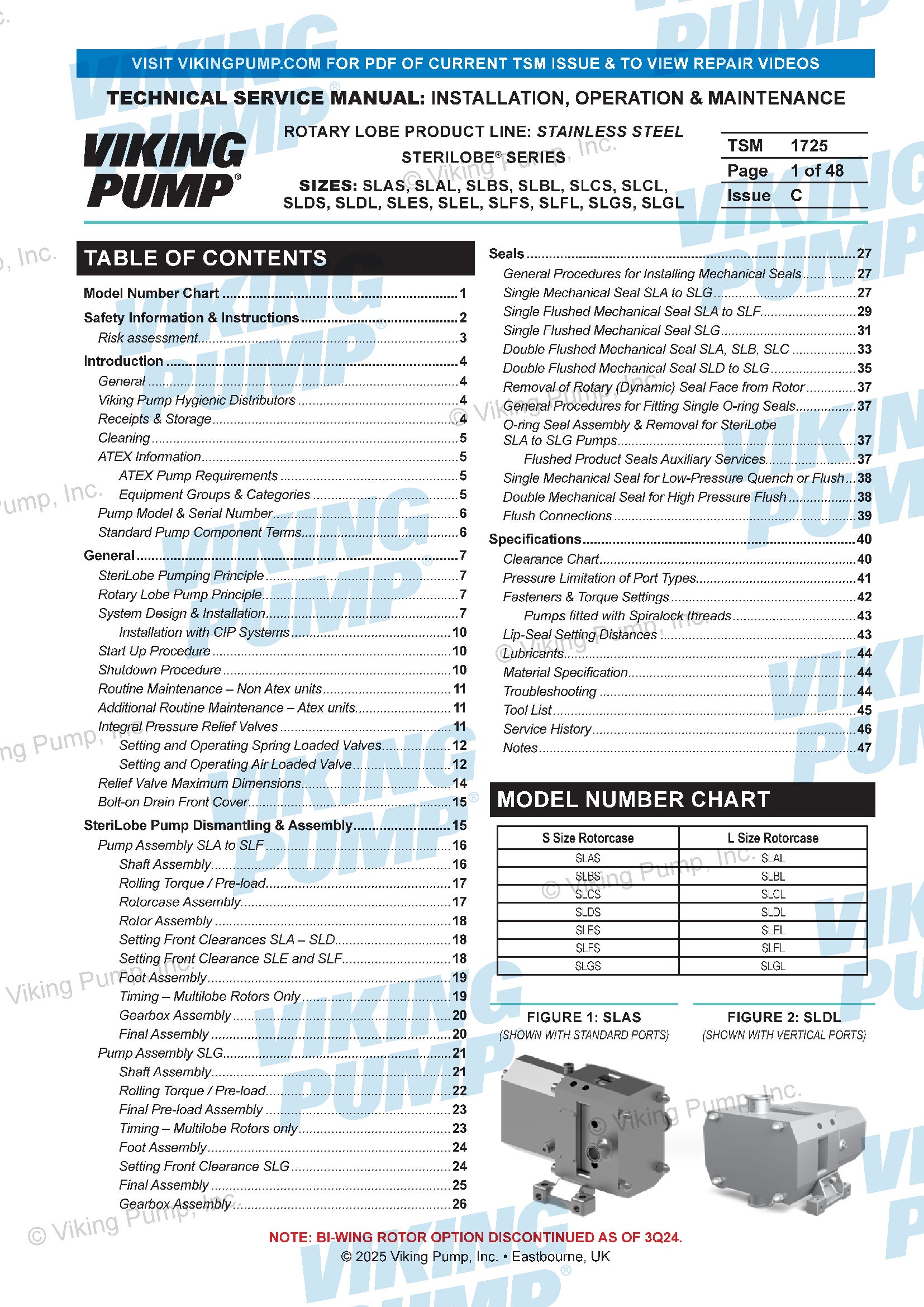

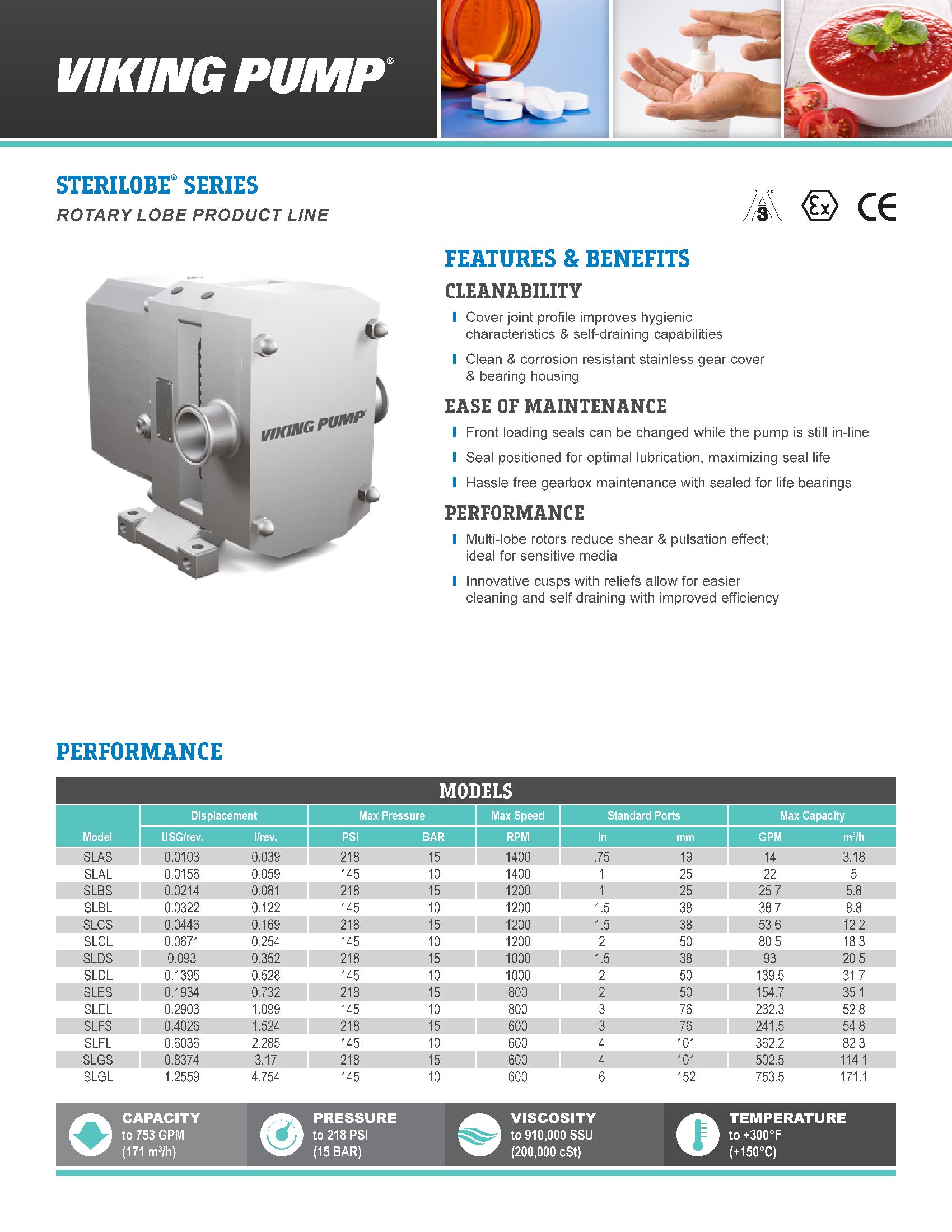

Downloads

Capacity

to 753 GPM
to 171 m³/h

Viscosity

to 910,000 SSU
to 200,000 cSt

Pressure

to 218 PSI
to 15 BAR

Temperature

to +300°F
to +150°C

Options

Porting

Complete range of hygienic clamp, screw, flange & industrial screw connections

Tri-clamp, flanged, DIN, IMDA, NPT, BSP, etc.

Drives

P Purchased Gear Reducer Drive

Mounting

Foot Mount

Sealing

Single Mechanical

Single mechanical with flush or quench

Double Mechanical with Flush

Specifications

Specifications
Model	Standard Port Size	Nominal Pump Rating (GPM)	Nominal Pump Rating (m3/h)	Maximum RPM	Maximum Pressure PSI	Maximum Pressure BAR
SLAS	0.75"	14	3.18	1400	218	15
SLAL	1"	22	5	1400	145	10
SLBS	1"	25.7	5.8	1200	218	15
SLBL	1.5"	38.7	8.8	1200	145	10
SLCS	1.5"	53.6	12.2	1200	218	15
SLCL	2"	80.5	18.3	1200	145	10
SLDS	1.5"	93	20.5	1000	218	15
SLDL	2"	139.5	31.7	1000	145	10
SLES	2"	154.7	35.1	800	218	15
SLEL	3"	232.3	52.8	800	145	10
SLFS	3"	241.5	54.8	600	218	15
SLFL	4"	362.2	82.3	600	145	10
SLGS	4"	502.5	114.1	600	218	15
SLGL	6"	753.5	171.1	600	145	10

Photos

Videos

Pharmaceuticals

Pharmaceuticals are substances used in the diagnosis, treatment and/or prevention of diseases in humans and animals. Can also be referred to as drugs and medications.

STERILOBE®

316L stainless steel
Clean in place
FDA conformity

REVOLUTION®

316L stainless steel
Clean in place
FDA conformity

Beverages

A liquid consumed, other than water, typically a drink. This can include tea, coffee, alcoholic, soft drinks and fruit juices.

TRA®10

316L Stainless Steel
O Ring or Mechanical seals

CLASSIC+

316L Stainless Steel
Mechanical seals

Cream (from Dairy)

Cream is a dairy product that is typically the fatty part of milk that rises to the top if allowed to stand. It is used in butter production and other food applications.

CLASSIC+

316L Stainless Steel
Mechanical seals

TRA®20

316 stainless steel
O Ring or mechanical seals

REVOLUTION®

316L stainless steel
O Ring or mechanical seals

Blood Products

Therapeutic products derived from human blood including whole blood, plasma and other blood components for transfusion and medical treatment.

STERILOBE®

316L Stainless Steel
Clean in place
FDA conformity

REVOLUTION®

316L Stainless Steel
Clean in place
FDA conformity

Cell Broth

The cells, nutrients and other components that make up the content of a microbial bioreactor. These are often used in biopharmaceutical products.

STERILOBE®

316L Stainless Steel
Clean in place
FDA conformity

REVOLUTION®

316L Stainless Steel
Clean in place
