Composite Mag Drive

Composite Mag Drive

Glossary Right Side Image

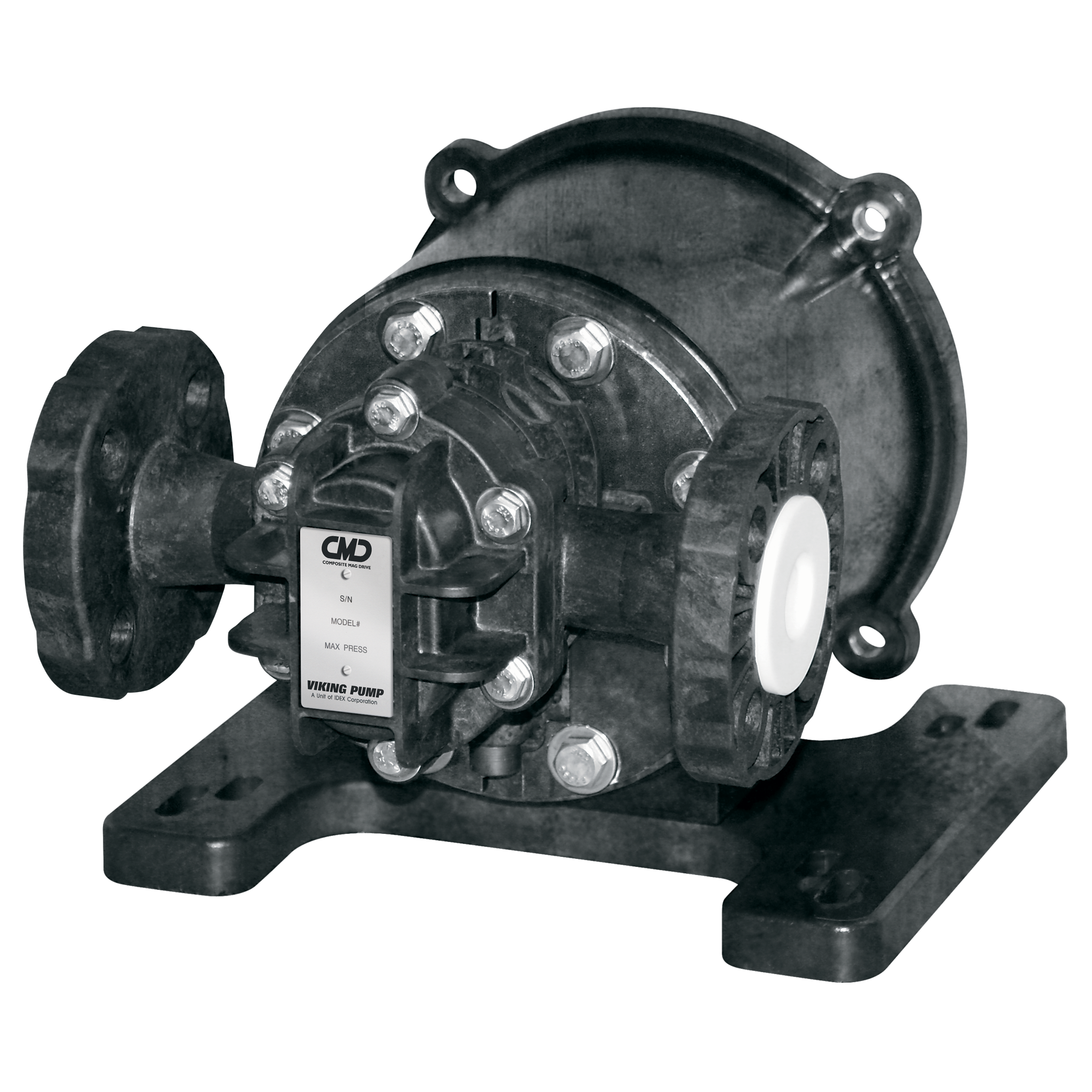

image of a composite mag drive
Abbreviation / Acronym
CMD
Classification
Séries de modèles Viking Pump
Definition

Série de pompes à engrenages externes et à entraînement magnétique sans joint, nommée ainsi en raison de sa structure composite non métallique.

What is a composite mag drive pump?

A composite mag drive pump is a sealless, magnet driven external gear pump (the Viking Pump® CMD Series™) that has non-metallic, composite construction.

What do you use a composite mag drive pump for?

Because of their non-metallic construction, composite mag drive pumps are ideal for industrial chemical metering and industrial waste water management. These applications require pumps that can handle harsh or dangerous chemicals and can dose them in exact quantities. Specific markets include the chemical metering for biofuels, mining, food additives, and foundry applications.

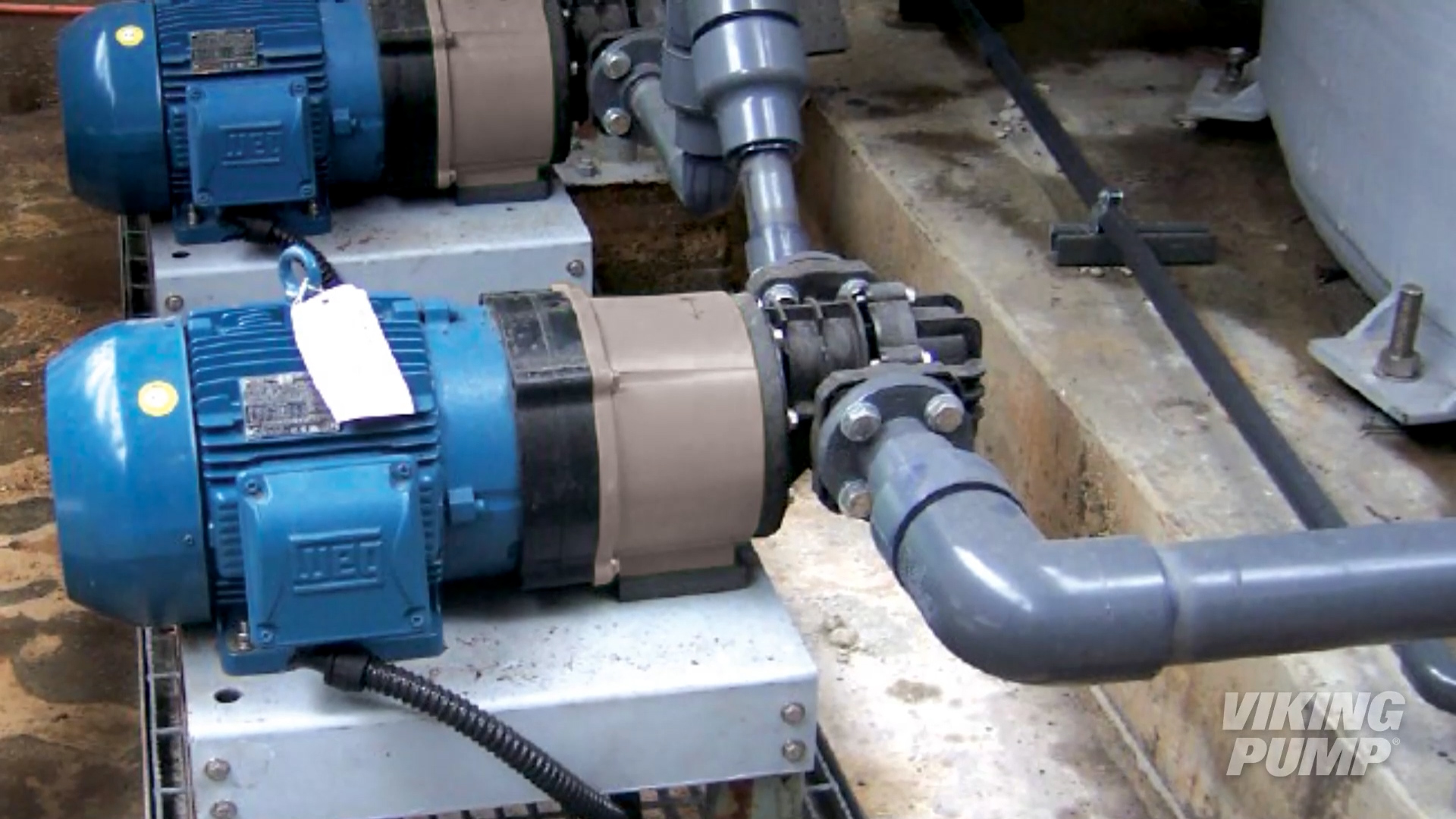

Image showing the applications where composite mag drive pumps in the field

Servicing a composite mag drive pump

Composite mag drive pumps like the CMD Series™ have very few components, rebuild kits, and a front pull out design – so maintenance is relatively easy. Self-aligning parts and piloted fits ensure proper assembly.

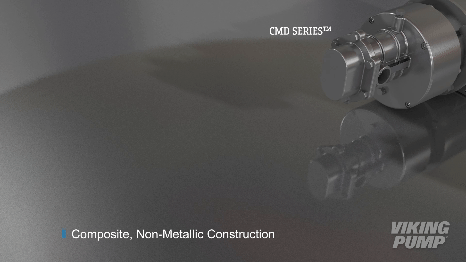

Animation showing the different components of a composite mag drive pump

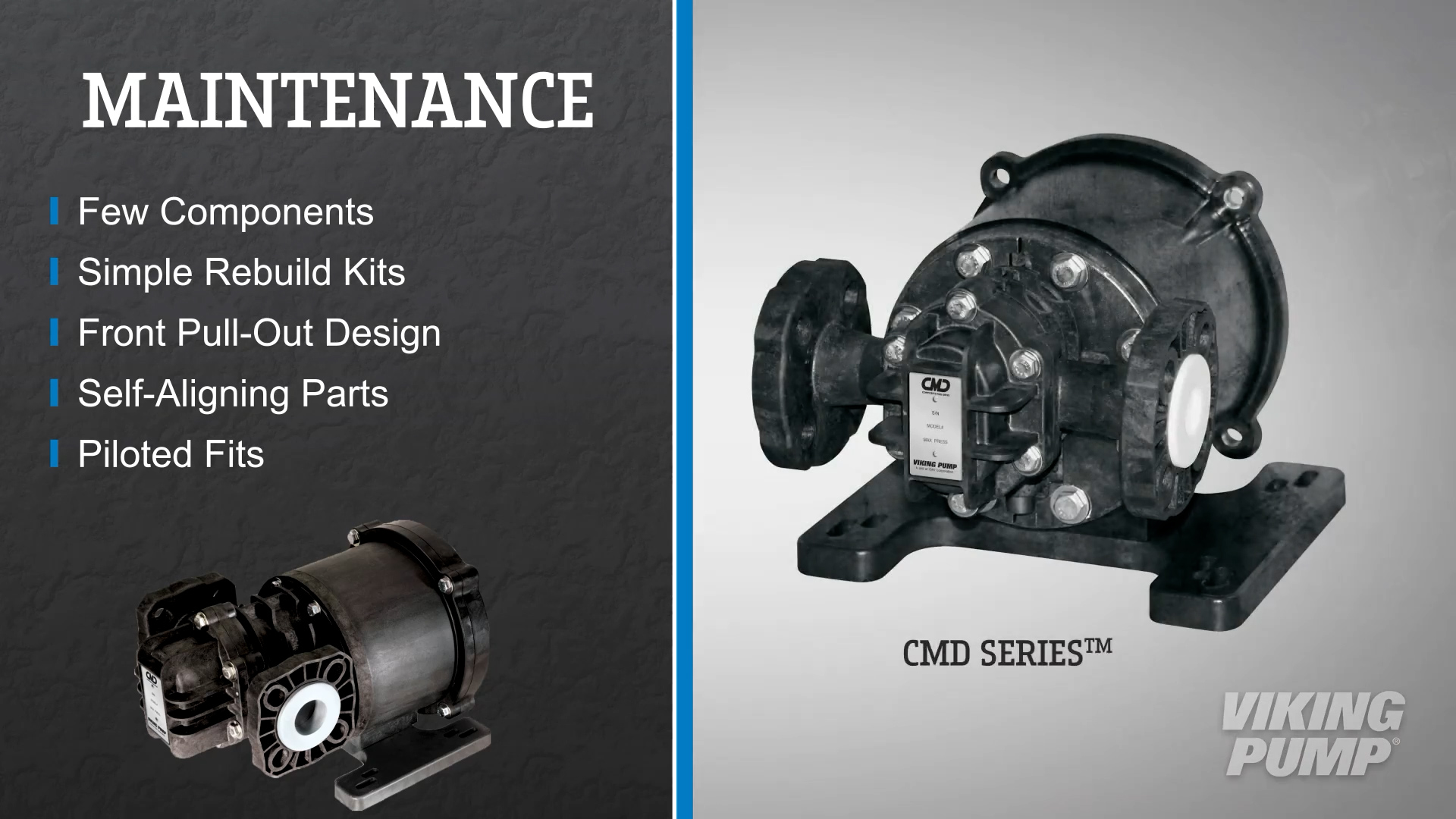

Image highlighting the ease of maintenance benefits of a Viking Pump composite mag drive pump
