The 897 Series™ internal gear pump is the perfect solution for refined fuels, lube oils, rotating equipment lubrication, and more due to the sealless mag drive which provides the highest level of liquid and vapor containment. It can handle flows up to 75 GPM (17 m³/h).
Features & Benefits
- Sealless mag drive eliminates the shaft seal to provide the highest level of liquid and vapor containment
- All liquid and vapor is hermetically sealed in the pump
- Used especially for hazardous and difficult-to-seal liquids
- Optional high pressure canister for inlet pressures up to 2,250 PSI (155 BAR)
Capacity
to 75 GPM
to 17 m³/h
Viscosity
28 to 250,000 SSU
1 to 55,000 cSt
Pressure
to 125 PSI
to 9 Bar
Temperature
-60 to +500 °F
-50 to +260 °C
Options
Porting
Opposite (180°)
NPT
Flanged (ASME / ANSI)
High Pressure Flanges
Drives
M Motor Mounted Drive
B Bracket Mounted Drive
D Direct-Mounted Drive
Mounting
Foot Mount
Motor Mount
Sealing
Mag Drive
Specifications
Model | Standard Port Size | Nominal Pump Rating GPM | Nominal Pump Rating m3/h | Maximum RPM | Maximum Pressure PSI | Maximum Pressure BAR |
---|---|---|---|---|---|---|

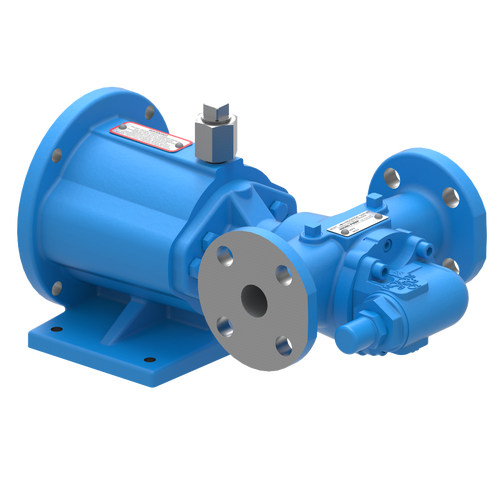

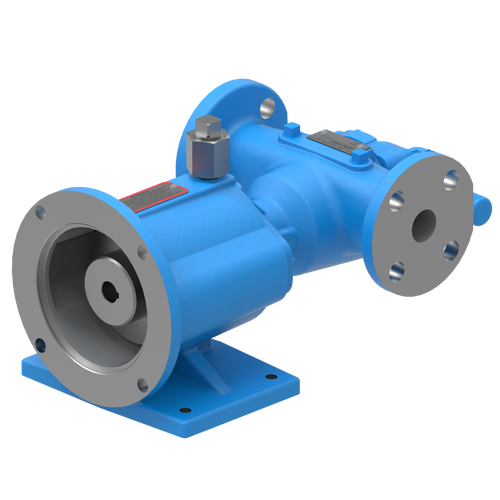

GG897 | 1 | 10 | 2.3 | 1800 | 125 | 9 |
HJ897 | 1.5 | 20 | 4.5 | 1800 | 125 | 9 |

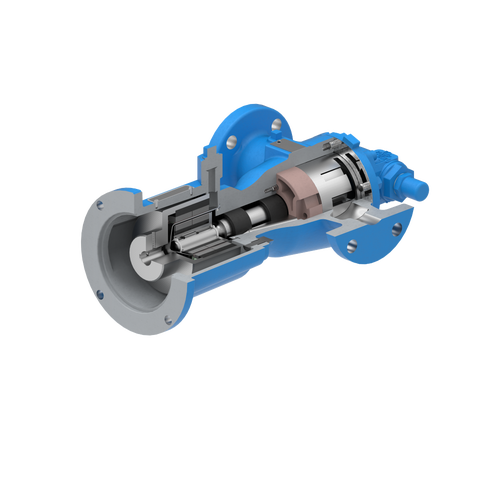

HL897 | 1.5 | 30 | 6.8 | 1800 | 125 | 9 |
AS897 | 3 | 35 | 8 | 1200 | 125 | 9 |

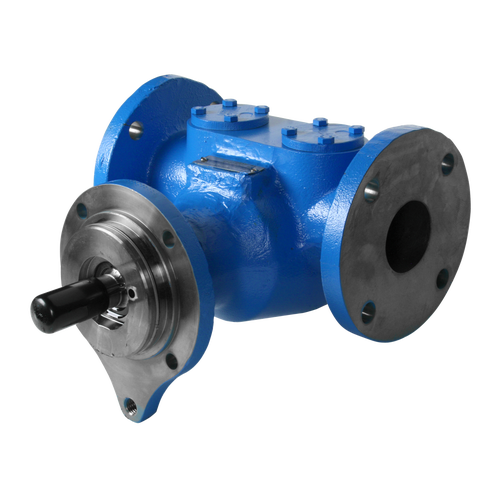

AK897 | 3 | 50 | 11 | 1200 | 125 | 9 |

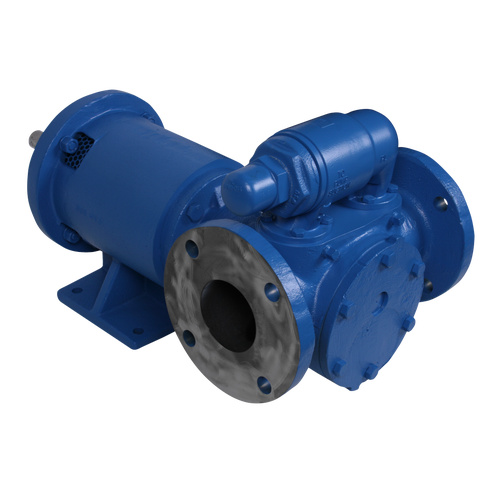

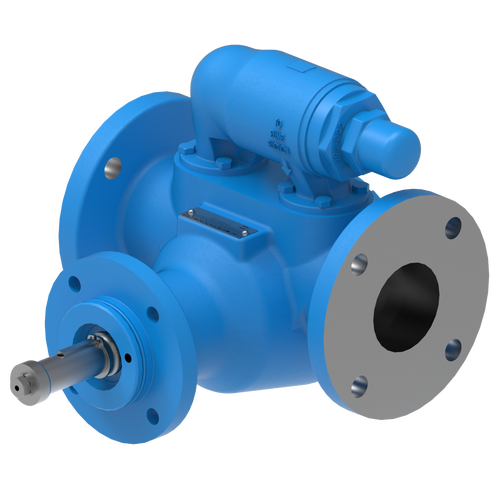

AL897 | 3 | 75 | 17 | 1200 | 125 | 9 |
Facets |
Photos
Lube Oil (Machinery Lubrication)
Machinery lubrication pumps are used in everything from small backup generators to naval ships. Lube oils, as the name implies, are the liquids used to lubricate rotating and reciprocating machinery. Lube oils may be handled at higher pressures to ensure their penetration of the equipment.
