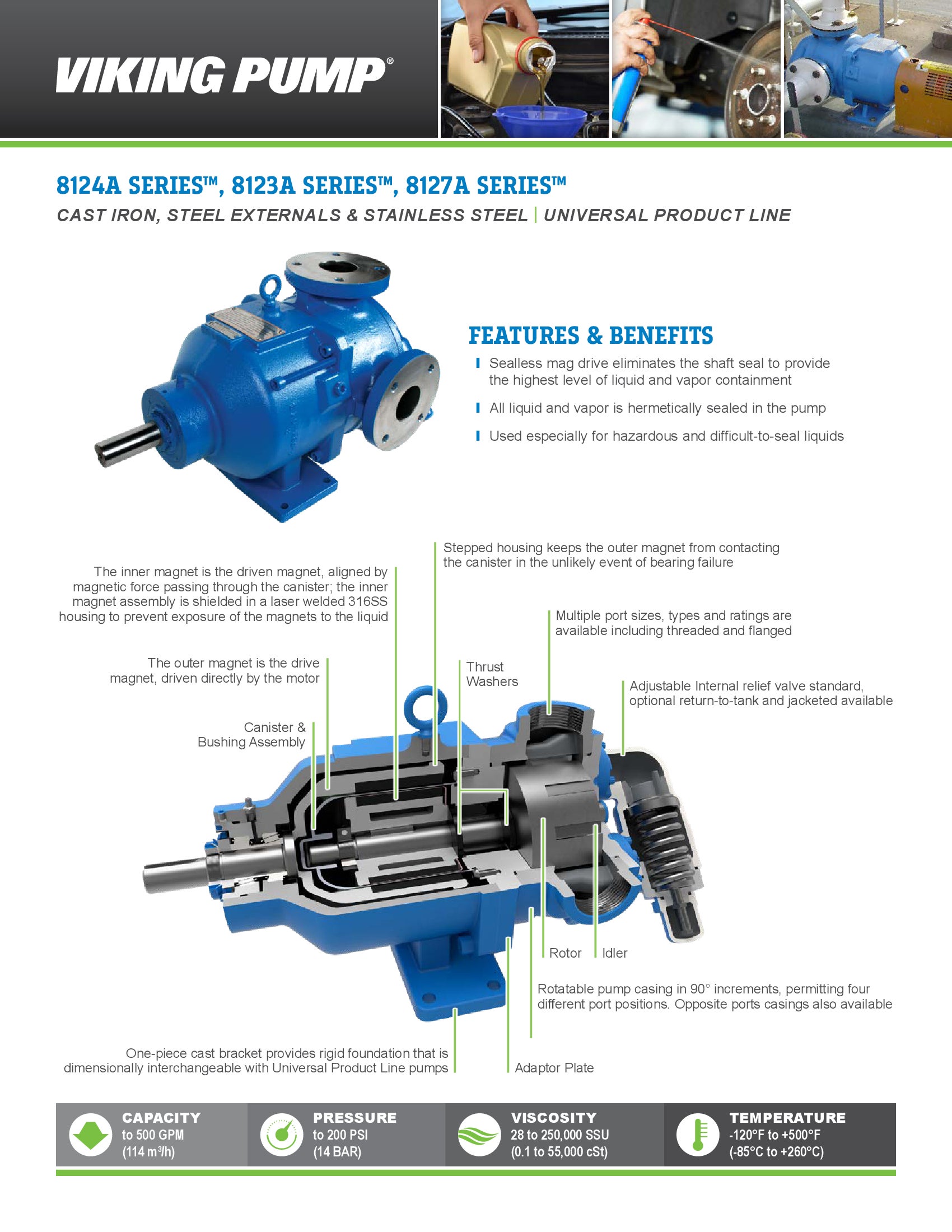

The 8127A Series™ internal gear pump is the perfect solution for petrochemicals, isocyanates, polyols, and more due to the sealless mag drive which keeps hazardous liquids contained. It can handle flows up to 500 GPM (114 m³/h).
Features & Benefits
- Sealless mag drive eliminates the shaft seal to provide the highest level of liquid and vapor containment
- All liquid and vapor is hermetically sealed in the pump
- Used especially for hazardous and difficult-to-seal liquids
Capacity
to 500 GPM
to 114 m³/h
Viscosity
28 to 250,000 SSU
1 to 55,000 cSt
Pressure
to 150 PSI
to 10 Bar
Temperature
-60 to +500 °F
-50 to +260 °C
Options
Porting
Drives
Mounting
Sealing
Specifications
Model | Standard Port Size | Nominal Pump Rating (GPM) | Nominal Pump Rating (m3/h) | Maximum RPM | Maximum Pressure PSI | Maximum Pressure BAR |
---|---|---|---|---|---|---|
H8127A | 1.5 | 15 | 3.4 | 1750 | 150 | 10 |
HL8127A | 1.5 | 30 | 6.8 | 1750 | 150 | 10 |
K8127A | 2 | 80 | 18 | 780 | 150 | 10 |
KK8127A | 2 | 100 | 23 | 780 | 150 | 10 |
LQ8127A | 2.5 | 135 | 30 | 640 | 150 | 10 |
LL8127A | 3 | 170 | 39 | 640 | 150 | 10 |
LS8127A | 3 | 200 | 45 | 640 | 125 | 9 |
Q8127A | 4 | 300 | 68 | 520 | 125 | 9 |
QS8127A | 6 | 500 | 114 | 520 | 125 | 9 |
Photos
Videos
Polyol
Alcohols having many hydroxyl radicals are called polyols. Many companies market polyols under their own trade names. Product viscosity varies greatly depending on the specific polyol, but can be as thick as 40,000 cP. Polyols are often blended with isocyanates, so pumps handing polyols are often requested to be built using isocyanate compatible lubricants.
Resins
Resins are high viscosity liquids with potentially shear sensitive (thinning) components, and made up of solvents, waxes, surfactants, and semi-solid resin particles all with various chemical compatibility concerns. These resins can be used in polyurethanes, epoxies and other adhesives. In some cases, resins contain pigments that bring with them abrasive wear concerns.
Adhesives
Adhesives are a group of substances, such as cement, glue, mucilage, and paste that are capable of holding materials together by surface attachment. Adhesives are made from many different basic materials, among them dextrin, latex, silicones, liquid rubber, resin, sodium silicate, and starch.
Caustic (Sodium Hydroxide)
Sodium hydroxide is soluble in water, alcohol and glycerol. It is used in the manufacture of other chemicals, rayon and film, petroleum refining, pulp and paper, making of aluminum, refining vegetable oil, in detergents, soaps, textile processing, in reclaiming rubber and as an alkali in foods. The viscosity ranges from water-thin to 40 cP depending on concentration and temperature.
