GB-414 SERIES™ PIPELINE INJECTION PUMP



Dimensionally interchangeable with Northern® 4900 Series

  • Pump dimensions match existing motor, bases & piping.

  • Dual ports eliminate costly piping modifications

  • Spare pumps available in stock for immediate shipment on a first-come-first-serve basis



VIEW SPECS
DOWNLOAD FLYER
download

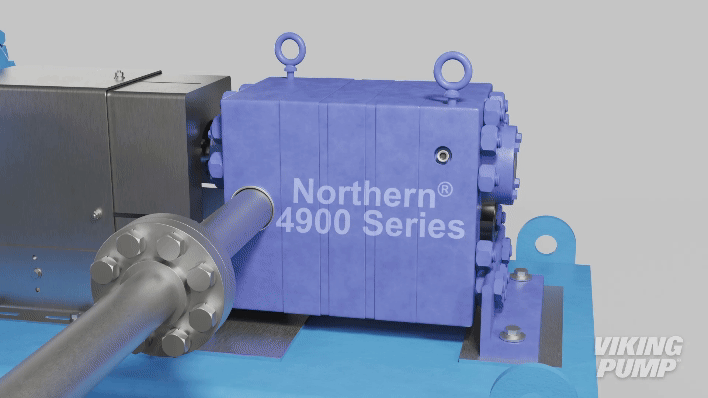

gif comparing NOrthern 4900 series with Viking Pump GB series

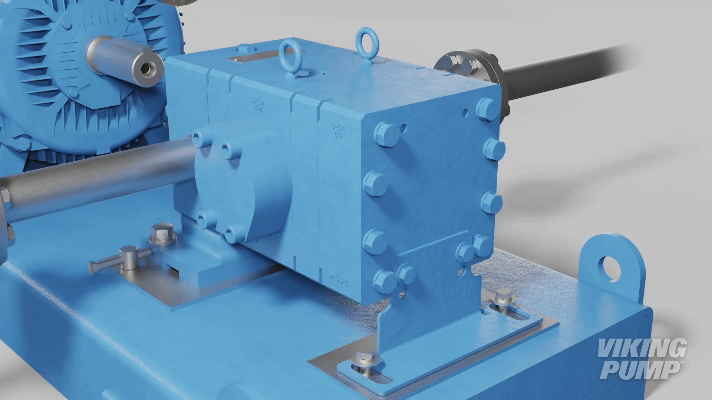

Viking pump gb-414 series exploded view gif

Simple, Field-Rebuildable Design

  • Simple disassembly and reassembly process saves time and money.

  • Rebuild where and when you need it.

  • Complete rebuild kit brings the pump back to as-new operating condition.

Speak to an Expert
forward

Reliable Sealing Solution

  • Type 2 bellows seal with standard 200 PSI inlet rating reduces the leak risk and expense of multiple seals per pump.

  • Robust axial thrust control bearing reduces premature seal failure due to elevated inlet pressure, starts, stops, and other difficult application conditions.

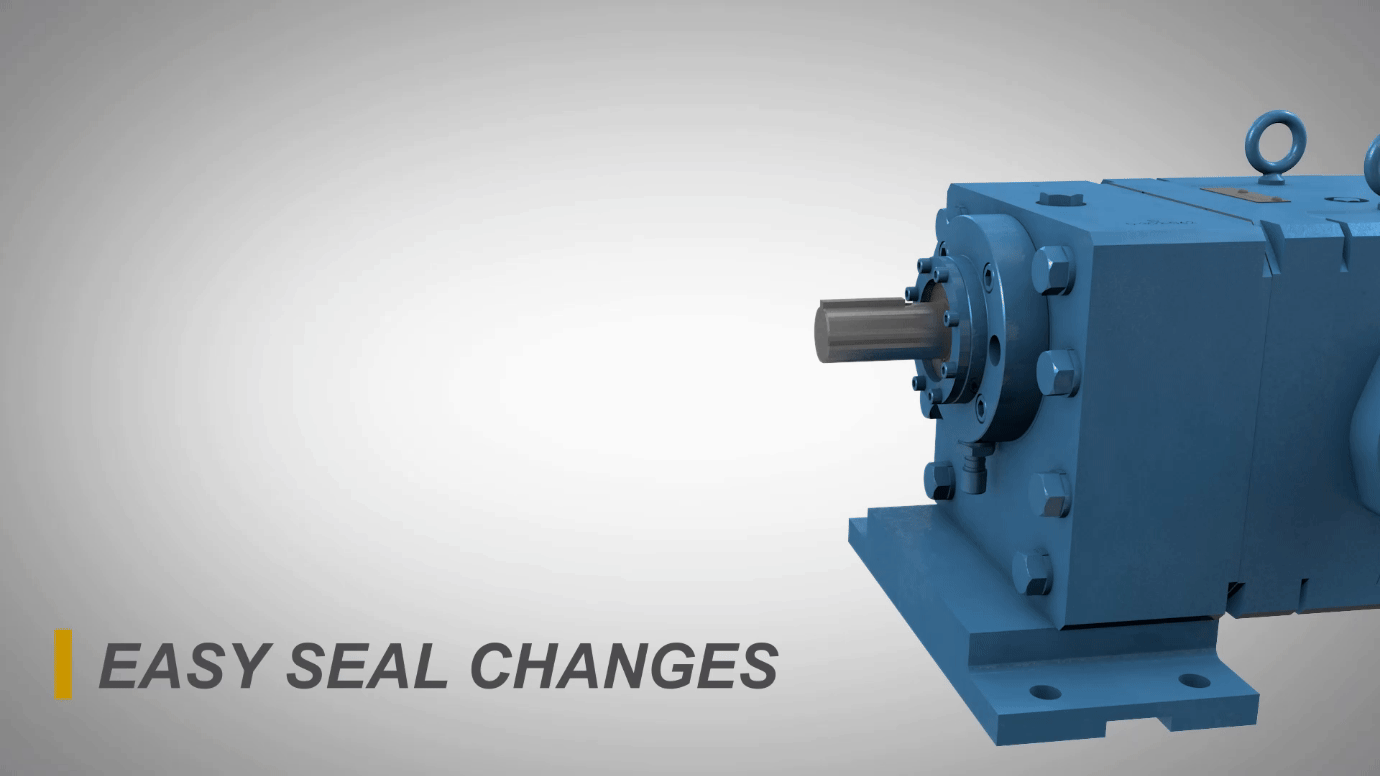

easy seal changes on GB-414

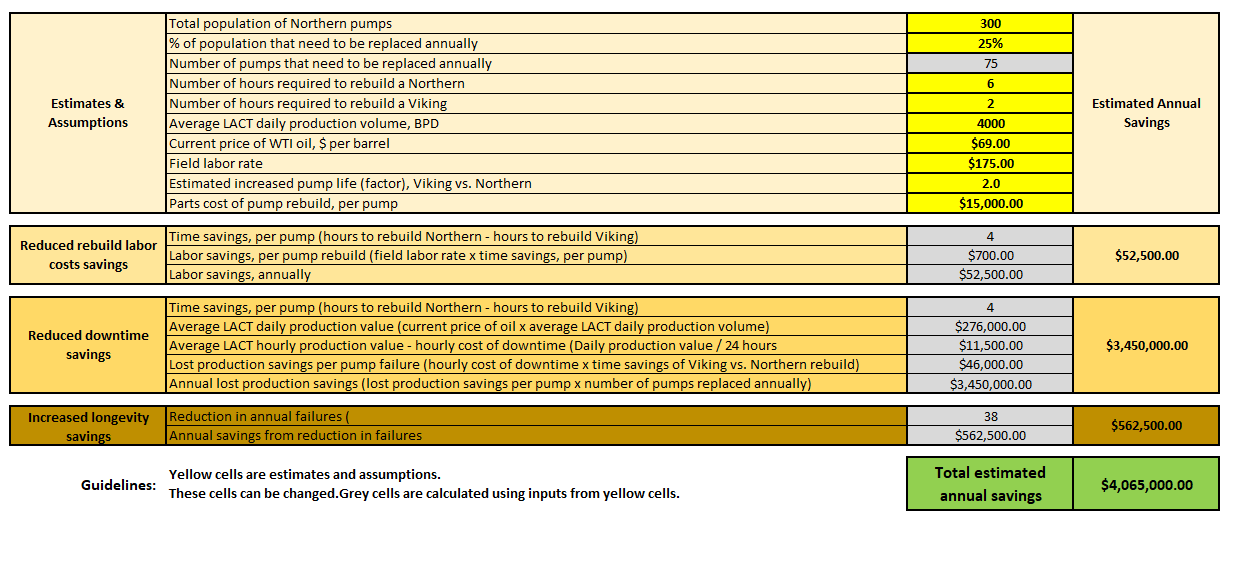

Drop-In Replacement Savings Calculator

Replacing your existing pipeline injection gear pumps with Viking's GB Series could save you significant dollars every year through increased pump life and reductions in labor and downtime costs.  To calculate your potential savings, download our Excel based saving calculator spreadsheet and see how much money you could save by upgrading.

Download Savings Calculator
download
northern_savings_calculator





Performance

Pump Model Port Size & Type* Nominal Flow @ 200 PSI
(1,775 RPM) on 4 cP		 Nominal Flow @ 400 PSI
(1,775 RPM) on 4 cP		 Nominal Flow @ 600 PSI
(1,775 RPM) on 4 cP		 Nominal Flow @ 750 or 800 PSI
(1,775 RPM) on 4 cP		 Nominal Flow @ 1000 PSI
(1,775 RPM) on 4 cP		 Max Continuous Pressure
Inch GPM BPD GPM BPD GPM BPD GPM BPD GPM BPD PSI
Viking Pump® GB-41430 2" SAE &
2" NPT		 105 3620 100 2455 96 3311 92 3180 89 3061 1500
Northern® Pump 4900-10 2" NPT 64 2194 60 2057 56 1920 52 1783 49 1680 1440
Northern® Pump 4900-15 2" NPT 96 3291 92 3154 88 3017 83 2846 79 2709 1165
Viking Pump® GB-41440 3" SAE &
2" NPT		 136 4691 130 4467 124 4275 120 4144 - - 750
Northern® Pump 4900-20 2" NPT 129 4423 124 4251 119 4080 114 3909 - - 875
Northern® Pump 4900-25 2" NPT 162 5554 156 5349 150 5143 - - - - 700

*2" and 3" SAE ports use J518 Code 61 SAE flange ports.
